CO₂ Monitor

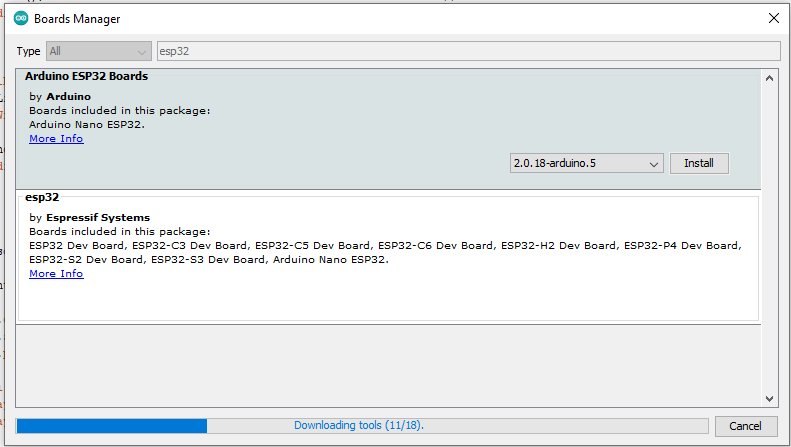

/*  ESP32   LOLIN D32 Board*/

/* CO2 Monitor, Plotter and Pushsafer notifier */

#include <WiFi.h>
#include <WiFiManager.h>                                  // https://github.com/tzapu/WiFiManager

#include <HTTPClient.h>
#include <Arduino_JSON.h>                                 // https://github.com/arduino-libraries/Arduino_JSON
#include <UrlEncode.h>


#include <SPI.h>
#include <Adafruit_GFX.h>
#include <Adafruit_PCD8544.h>
#include <Fonts/FreeSansBold12pt7b.h>

#include <Wire.h>

#include <Preferences.h>

Preferences preferences;


#include "SparkFun_SCD4x_Arduino_Library.h" //Click here to get the library:http://librarymanager/All#SparkFun_SCD4x

SCD4x mySensor;


  //mySensor.enableDebugging(); // Uncomment this line to get helpful debug messages on Serial

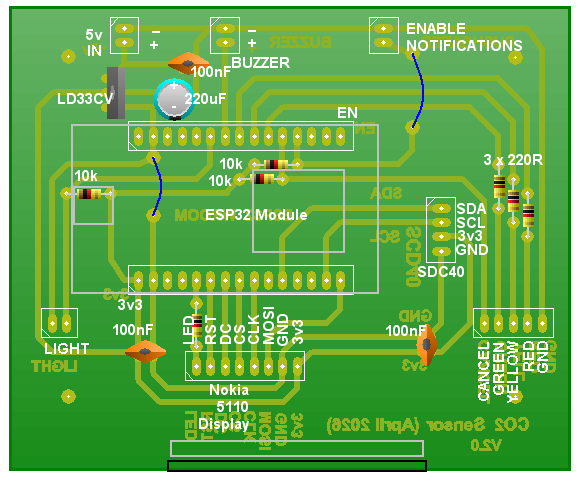

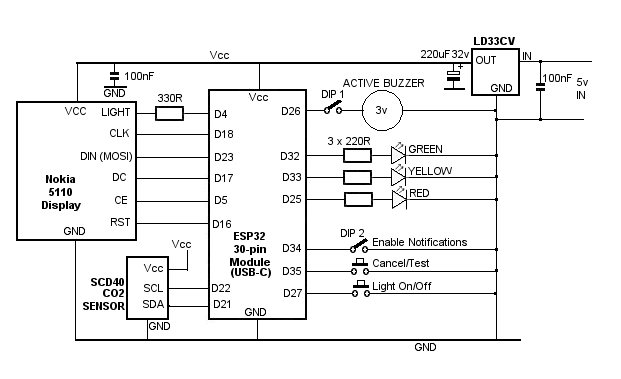

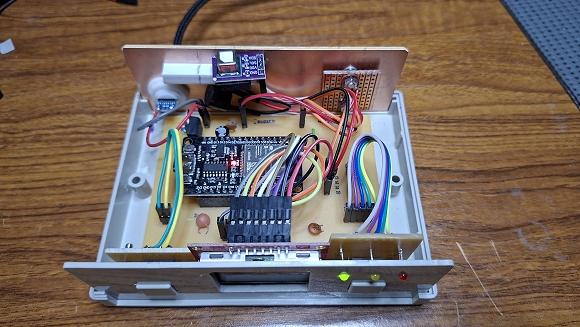

  // CLK = 18  - Hardware SPI             // Hardware connections to Nokia 5110 LCD display
  // MOSI = 23 - Hardware SPI
  // CS = 5    - Hardware SPI

  // D/C = 17  - Arbitrary selection
  // RST = 16  - Arbitrary selection

  // LED = 4  - Backlight.
  // Vcc - 3v3.
  // GND - GND.


 Adafruit_PCD8544 display = Adafruit_PCD8544(17, 5, 16);  // (D/C, CS, RST)

// Note with hardware SPI MISO and CS pins aren't used but will still be read  MISO = 19.  CS = 5
// and written to during SPI transfer.  Be careful sharing these pins!



String serverIP;          // These values will be entered during the WiFi Manager's "Configure WiFi" routine.
String id;                // The server IP is the LAN address of the computer running the server followed
                          // by a colon (:) and the Port which must be set up in the WiFi roouter's Port-Forwarding.

char serverIPDefault[] = "192.168.1.3:8841";    // This is the default server IP and port I used. Yours will be different.
                                                // Setting a default saves having to re-enter the details in the WiFi Manager
                                                // if the loss of the Network was only temporary and you will be re-connecting
                                                // to the same network.

char idDefault[] = "co2_sensor";                // This is the default ID sent from the CO2 sensor to the server so that..
                                                // the server knows which device is sending data.


#define CO2_WARNING 3500                // Sound buzzer id co2 level is above this value.
#define CO2_HIGH 4000                   // Send notification if notification_sent flag is false.

#define PLOT_MAX 30                     // SCD40 sensor provides data every 30 seconds but we only need to send data
                                        // to the server/plotter every 15 minutes, so count 30 sensor readings before sending
int plotCounter = 30;                   // data to the server.


#define WEB_PORTAL_TIMEOUT 300          // The WiFi Manager's configuration screen will time out after 5 minutes.


int rssi;

bool notification_sent = false;         // Flag to indicate a PushSafer notification has been sent to disable repeats.


int reset_notification = 1000;          // reset 'already sent' notification to allow next alarm.

int numLeft = -1;                       // PushSafer tells how many left before account needs renewing and briefly displays
                                        // on Nokia 5110 screen.

bool alarm_sounding = false;
bool alarm_cancelled = false;

String pushSaferURL = "http://www.pushsafer.com/api";     // PushSafer server URL.

String pushSaferKey;                                      // PushSafer Key and DeviceID are obtained when you set up..
String deviceID;                                          // your PushSafer Account.

char pushSaferKeyDefault[] = "                    ";      // You can enter your PushSafer Key and Device ID here to..
char deviceIDDefault[] = "      ";                        // pre-load the WiFi configuration screen.
                                                          // You can over-write WiFi configuration screen with new data..
                                                          // if you change your PushSafer Key or Device ID.

String title = "CO2 Monitor";                             // PushSafer notification Title
String icon = "11";                                       // PushSafter "Leave building" icon. [->

String pushSaferPath;                                     // Full url to PushSafer including paramneters.

bool displayLight = false;


bool shouldSaveConfig = false;                            // WiFimanager Flag for saving data


void saveConfigCallback() {                               // Callback notifying us of the need to save configuration.
  shouldSaveConfig = true;
}

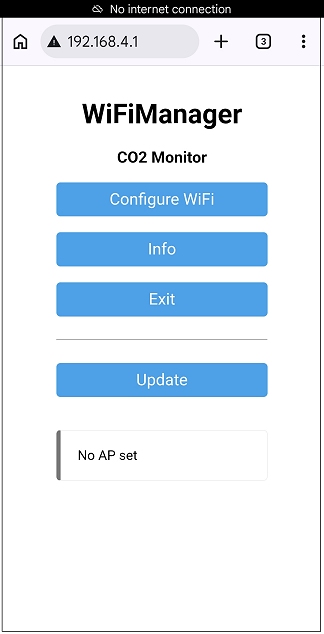

void configModeCallback(WiFiManager *myWiFiManager) {     // (Very) brief instructions shown on Nokia 5110 screen
                                                          // Called when config mode launched.

  display.clearDisplay();

  display.println("Connect phone:");                      // On your phone, search Settings -> Connections ->
  display.println("'CO2 Monitor'");                       // WiFi networks for "CO2 Monitor".  Connect to that
  display.println("Browser type: ");                      // network.
  display.println(WiFi.softAPIP());                       // Opern a web browser and enter the IP address shown.
  display.println("Configure WiFi");                      // Press 'Configure WiFi' then tap on your WiFi router
  display.print("Press 'Save'");                          // in the list, then fill in the text boxes and hit
  display.display();                                      // 'Save'.

}



void setup()   {
  WiFi.mode(WIFI_STA);    //Set Wi-Fi Mode as station

  Serial.begin(115200);

  preferences.begin("CO2 Monitor", false);


  displayLight = preferences.getBool("displayLight", displayLight);            // Retrieve default values from File System

  serverIP = preferences.getString("serverIP", serverIPDefault);               // Server local IP address and Port.
  id = preferences.getString("co2_sensor", idDefault);                         // Data identifier from CO2 sensor to server.

  pushSaferKey = preferences.getString("pushSafer Key", pushSaferKeyDefault);  // PushSafer private key
  deviceID = preferences.getString("device ID", deviceIDDefault);              // PushSafer device iD.


  pinMode(26, OUTPUT);                      // Buzzer
  digitalWrite(26, LOW);

  pinMode(4, OUTPUT);                       // Backlight
  digitalWrite(4,  displayLight);

  pinMode(32, OUTPUT);                      // Green LED
  pinMode(33, OUTPUT);                      // Yellow LED
  pinMode(25, OUTPUT);                      // Red LED

  pinMode(34, INPUT);                       // Enable PushSafer notifications.  | These INPUTS seem to have no
  pinMode(35, INPUT);                       // Cancel Buzzer                    | internal pullup resistors.
  pinMode(27, INPUT);                       // Backlight on/off                 |


  display.begin();
  display.setContrast(60);
  display.setRotation(2);

  display.clearDisplay();


  WiFiManager wm;

//  wm.resetSettings();              // To clear WiFi settings for testing, uncomment this line.
//  preferences.clear();             // Clears saved preferences for testing.


// Set config save notify callback
  wm.setSaveConfigCallback(saveConfigCallback);

  // Set callback that gets called when connecting to previous WiFi fails, and enters Access Point mode
  wm.setAPCallback(configModeCallback);

  wm.setConfigPortalTimeout(WEB_PORTAL_TIMEOUT);        // 5 minutes

// Configure web portal with custom parameters

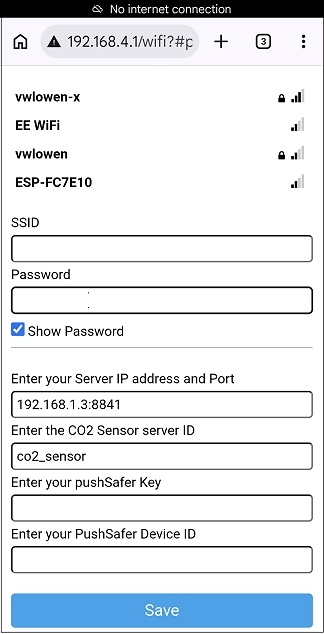

  WiFiManagerParameter serverIP_text_box("serverIP", "Enter your Server IP address and Port", serverIPDefault, 20);
  wm.addParameter(&serverIP_text_box);

  WiFiManagerParameter serverID_text_box("serverID", "Enter the CO2 Sensor server ID", idDefault, 10);
  wm.addParameter(&serverID_text_box);

  WiFiManagerParameter pushSaferKey_text_box("pushSaferKey", "Enter your pushSafer Key", pushSaferKeyDefault, 25);
  wm.addParameter(&pushSaferKey_text_box);

  WiFiManagerParameter deviceID_text_box("deviceID", "Enter your PushSafer Device ID", deviceIDDefault, 10);
  wm.addParameter(&deviceID_text_box);

  display.println("Connecting to WiFi");

  display.display();

  bool res;
  res = wm.autoConnect("CO2 Monitor");                     // WiFi Manager attempts to connect to the WiFi network
  if(!res) {                                               // and calls loopback  'configModeCallback()' if it fails.
     Serial.println("Failed to connect");

     digitalWrite(26, HIGH);                               // 'Beep' buzzer to warn of failure to connect to WiFi.
     delay(200);
     digitalWrite(26, LOW);

     display.clearDisplay();
     display.println("No WiFi!");
     display.print("Continuing   without");
     display.display();
     delay(1000);
  }

 // Save the custom parameters to FS
  if (shouldSaveConfig) {
    serverIP = serverIP_text_box.getValue();
    id = serverID_text_box.getValue();

    pushSaferKey = pushSaferKey_text_box.getValue();
    deviceID = deviceID_text_box.getValue();


    preferences.putString("serverIP", serverIP);
    preferences.putString("id", id);

    preferences.putString("pushSafer Key", pushSaferKey);
    preferences.putString("device ID", deviceID);

  }

  rssi = WiFi.RSSI();


  Wire.begin();

  display.println();
  display.println("CO2 Sensor");
  display.print("is starting...");
  display.display();

  if (mySensor.begin() == false) {

    display.println("Sensor not detected. Freezing...");
    display.display();
    while (1);
  }

  //By default, the SCD4x has data ready every five seconds.
  //We can enable low power operation and receive a reading every ~30 seconds

  //But first, we need to stop periodic measurements otherwise startLowPowerPeriodicMeasurement will fail
  if (mySensor.stopPeriodicMeasurement() == true) {
   Serial.println(F("Periodic measurement is disabled!"));
 }

  //Now we can enable low power periodic measurements
  if (mySensor.startLowPowerPeriodicMeasurement() == true) {
    Serial.println(F("Low power mode enabled!"));
  }

  //The SCD4x has data ready every thirty seconds

}


void loop() {
  int co2 = 0;
  int humidity = 0;

  display.setFont();

  display.setCursor(0,0);                                                 // Display an asterisk at th etop left
  if( (digitalRead(34) == LOW) && (WiFi.status() == WL_CONNECTED) ) {     // of the screen if PushSafer notifications
     display.print("*");                                                  // are enabled and WiFi is connected.
  }  else
     display.print(" ");

  display.display();


  if ( (digitalRead(35) == LOW) && (alarm_sounding) ) {                    // Cancel Alarm Buzzer
    alarm_cancelled = true;
    alarm_sounding = false;
    digitalWrite(26, LOW);
    while (digitalRead(35) == LOW);
  }

  if ( (digitalRead(35) == LOW) && (!alarm_sounding) ) {                   // The 'Cancel Alarm' button is also the
    test_alarms();                                                         // 'Test' button if there is no alarm.
    while (digitalRead(35) == LOW);
  }


 if (digitalRead(27) == LOW) {                                             // Display light on/off
    displayLight = !displayLight;
    digitalWrite(4, displayLight);

    preferences.putBool("displayLight", displayLight);                     // Save current state of backlight.
    while (digitalRead(27) == LOW);
  }



  if (mySensor.readMeasurement()) {               // readMeasurement will return true when fresh data is available

    plotCounter++;

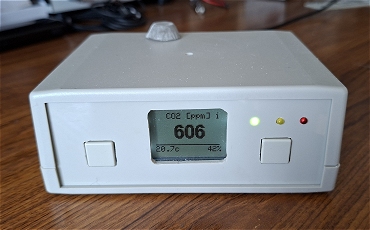

    display.clearDisplay();
    display.setCursor(15, 0);
    display.print("CO2 [ppm]");                   // Print the 'header' on the screen

    if (WiFi.status() == WL_CONNECTED) {          // Print an 'i' at top right of screen if WiFi is available.
      display.setCursor(75, 0);
      display.print("i");
    }


    display.setFont(&FreeSansBold12pt7b);         // Set large text.

    co2 = mySensor.getCO2();                      // Get the CO2 reading from the sensor.

    switch(co2) {                                 // Control the Green, Yellow and Red LEDs
     case 0 ... 999:
       digitalWrite(32, HIGH);                    // Green LED
       digitalWrite(33, LOW);                     // Yellow LED
       digitalWrite(25, LOW);                     // Red LED

       digitalRead(35) == LOW;                    // Turn off Alarm buzzer
       alarm_cancelled = false;
       alarm_sounding = false;

       notification_sent = false;                 // Reset notification sent ready for next time
       break;
     case 1000 ... 1499:
       digitalWrite(32, LOW);
       digitalWrite(33, HIGH);
       digitalWrite(25, LOW);

       digitalRead(35) == LOW;                    // Turn off Alarm buzzer
       alarm_cancelled = false;
       alarm_sounding = false;
       break;
     case 1500 ... 2999:
       digitalWrite(32,LOW);
       digitalWrite(33, LOW);
       digitalWrite(25, HIGH);
       break;
     case 3000 ... 15000:
       digitalWrite(32, LOW);
       digitalWrite(33, LOW);
       digitalWrite(25, HIGH);
       if( (!alarm_cancelled) && (co2 > CO2_WARNING) ) {
          digitalWrite(26, HIGH);                          // Turn ON Alarm Buzzer if not cancelled by button.
          alarm_sounding = true;
       }
       break;
     default:
       break;
     }

     (co2 < 1000)?  display.setCursor(23,30) : display.setCursor(15, 30);


    display.print(co2);
    Serial.println(co2);

    display.setFont();                                      // Reset to small font and print 'footer' on screen.
    display.drawLine(0, 38, 80, 38, BLACK);
    display.setCursor(0, 40);
    display.print(mySensor.getTemperature(), 1);
    display.print("c");

    display.setCursor(66, 40);
    humidity = mySensor.getHumidity();
    display.print(humidity, 1);
    display.print("%");

    if (numLeft > -1) {                           // If a PushSafer njotification has been requested, PushSafer
      display.setCursor(32, 40);                  // will respond with the number of notifications that remain
      display.print("(");                         // before the account needs topping up.
      display.print(numLeft);                     // Display at bottom of screen.
      display.print(")");
      numLeft = -1;                 // Only display number of notifications left until next sensor reading.
    }

     display.display();

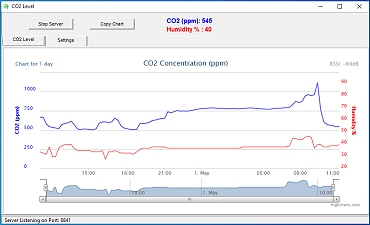

    // Send data to the server.

    if ((plotCounter >= PLOT_MAX) && (WiFi.status() == WL_CONNECTED)  && (humidity < 100)  )  {

      plotCounter = 0;

      WiFiClient client;
      HTTPClient http;

     rssi = WiFi.RSSI();

    // Specify request destination, including your GET variables - Send values to web server
     String http_request = "";

     http_request = "http://" + serverIP  + "/apage?";
     http_request += "id=" + id;
     http_request += "&leftaxis=" + String(co2);
     http_request += "&rightaxis=" +  String(humidity);

     http_request += "&rssi=" + String(rssi);

     http.begin(client, http_request);

    // Send the request
     int httpCode = http.GET();

    // Check the returning HTTP code
     if (httpCode > 0) {
      // Get a response back from the server
        String payload = http.getString();
      // Print the response
        Serial.println(payload);
     }

    // Close the HTTP connection
      http.end();
    }


    if ((digitalRead(34) == LOW) &&  (co2 > CO2_HIGH)  &&
        (notification_sent == false) && (WiFi.status() == WL_CONNECTED) ) {

      sendNotification("HIGH CO2 LEVEL: " + String(co2) + " (ppm)" );
    }

   }
   else
     Serial.print(F("."));  // Data not available

   delay(1000);

}


void sendNotification(String message) {                     // Send request to PushSafer to push notification to your phone.
   WiFiClient client;
   HTTPClient http;

// Clean up strings for pushSafer http request

   title = urlEncode(title);
   message = urlEncode(message);


   pushSaferPath = pushSaferURL +                          // String to send to PushSafer server.
                       "?d=" + deviceID +
                       "&i=" + icon +
                       "&t=" + title +
                       "&m=" + message +
                       "&k=" + pushSaferKey;

   Serial.println("  ");
   Serial.println(pushSaferPath);                           // Check PushSafer URL on Serial Monitor for debugging.



   Serial.println("Making HTTP request to ...");
   Serial.println(pushSaferPath);

   http.begin(client, pushSaferPath.c_str());

   int httpCode = http.GET();                               // Send the request

     if (httpCode > 0) {                                    // Check the returning HTTP code

       String payload = http.getString();                   // Get the response back from the server

       Serial.println("HTTP Response: ");                   // Print the response on Serial Monitor (for debugging)
       Serial.println(payload);

       JSONVar doc = JSON.parse(payload);                   // Parse the JSON data into JSONVar 'doc'

       int result = doc["status"];                          // Get 'status' from JSON doc. (1 = success)

       notification_sent = (result == 1);                   // Set notification_sent flag if valid response from PushSafer

       if (notification_sent) {                             // Look for number of remaining notifications available

         digitalWrite(4, HIGH);                             // Turn on backlight
         numLeft = doc["available"];

         Serial.print("Available: ");
         Serial.println(numLeft);
      }
   } else {
     notification_sent = false;                             // No response received from PushSafer.
   }

   http.end();                                              // Close the HTTP connection
   delay(1000);
}

void test_alarms() {

    Serial.println("Send test notification");

    digitalWrite(26, HIGH);                // Sound buzzer for half a second (if switch is On).
    delay(500);
    digitalWrite(26, LOW);

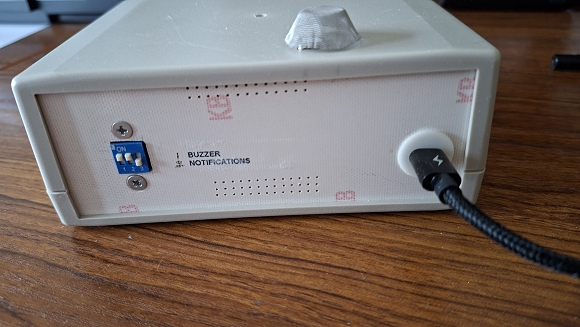

    if( (digitalRead(34) == LOW)  && (WiFi.status() == WL_CONNECTED) ){      // if Notifications are enabled...
      sendNotification("Test");
    }
}
